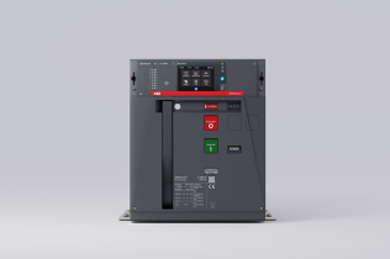

SACE Emax 3
Next-generation IEC air circuit-breaker platform covering 250–6300 A with Ekip Aware protection and digital functions.
ABB
AIR CIRCUIT BREAKERS
ABB-ONLY SERIES CATALOG
16 ABB SERIES AND APPLICATION BRANCHES
ABB data, routes and images are isolated from Schneider Electric. Open a series to review workbook-derived models, current ranges, performance, certification and replacement information.
VIEW SERIES
SACE Emax 2 IEC
Digital IEC air circuit-breaker platform covering 630–6300 A across E1.2, E2.2, E4.2 and E6.2 frames.

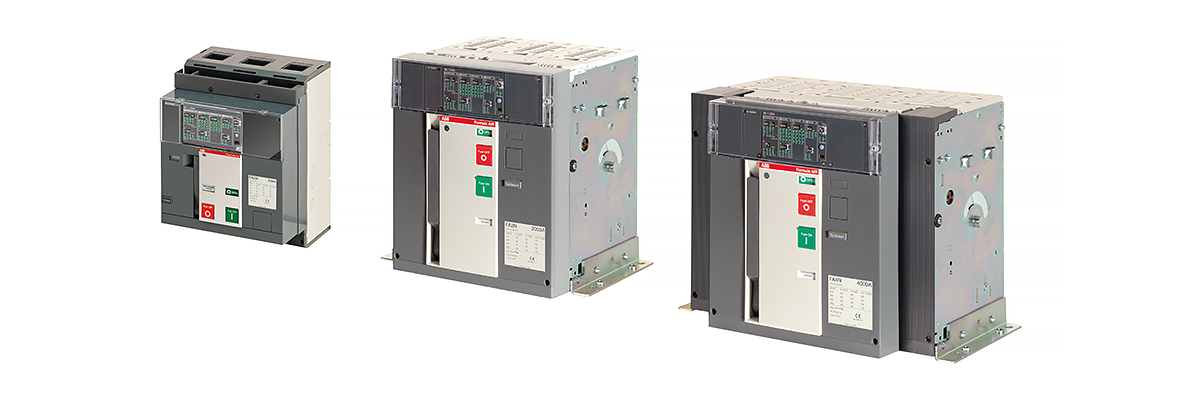

Formula AIR
Cost-effective ABB air circuit-breakers and switch-disconnectors covering 630–4000 A in FA1, FA2 and FA4 frames.
SACE Emax 2/E, E9 & E10
Special high-voltage Emax 2 configurations for systems above 690 V, including E9, E10 and UL variants.

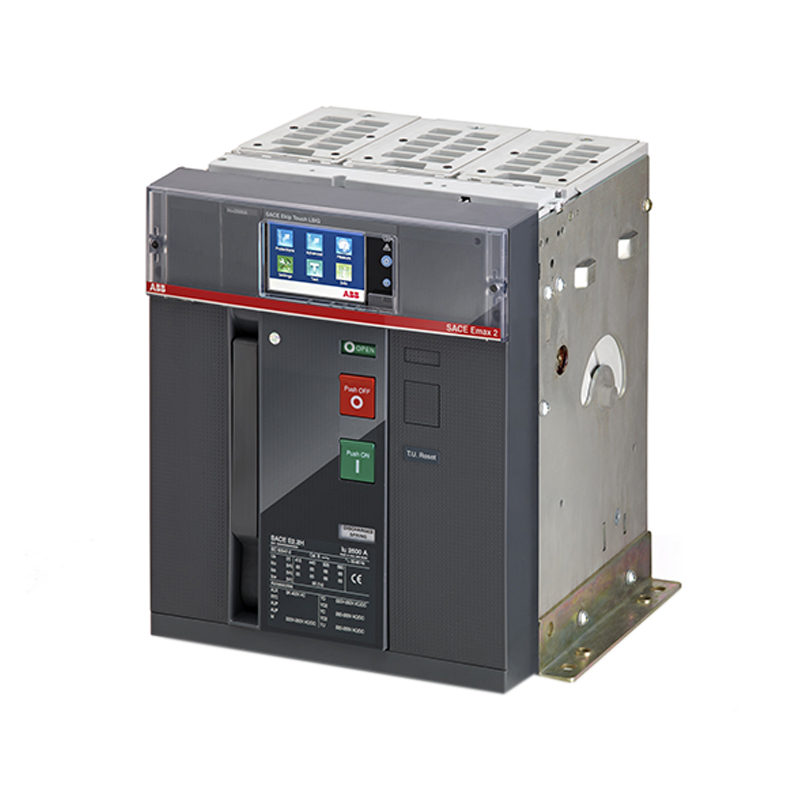

SACE Emax 2 MS/DC-E
1500 V DC switch-disconnector family for photovoltaic, energy-storage and DC distribution systems.
SACE Emax 2 DC-20
High-current DC switch-disconnector branch reaching 6000 A for DC bus isolation applications.
SACE Emax 2 VF
Variable-frequency switch-disconnector branch for converter outputs, wind power and non-50/60 Hz systems.
SACE Emax 2 ML
Shock-resistant marine air circuit-breaker branch for naval, vessel and offshore applications.
SACE Emax 2 RN
Regional renewable-energy Emax 2 branch for wind, photovoltaic and related power applications.

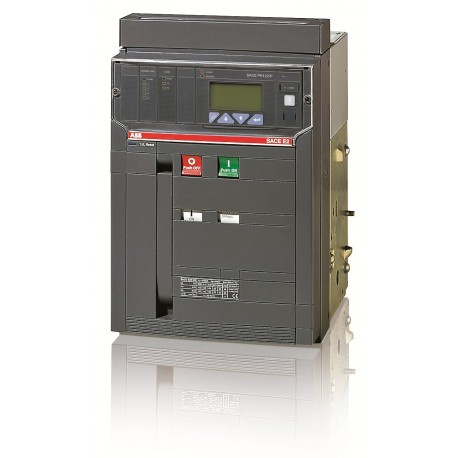

SACE Emax DC
Protective DC air circuit-breaker platform up to 5000 A and 1000 V DC with PR122/DC or PR123/DC trip units.
SACE Emax 3 UL / ANSI
North American Emax 3 platform covering 250–6000 A under UL489, UL1066 and ANSI configurations.
SACE Emax 2 UL / ANSI
North American Emax 2 branch covering UL489 and UL1066 applications across four principal frames.

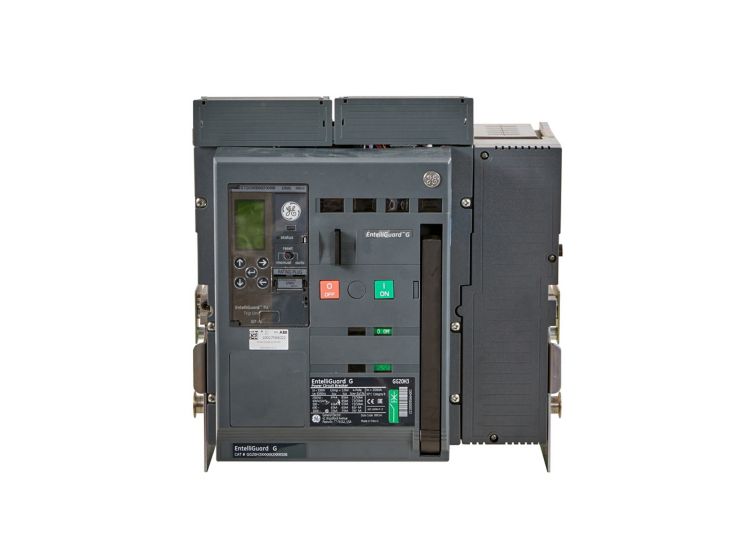

EntelliGuard G
North American low-voltage power circuit-breaker platform covering 400–6000 A with EntelliGuard TU protection.

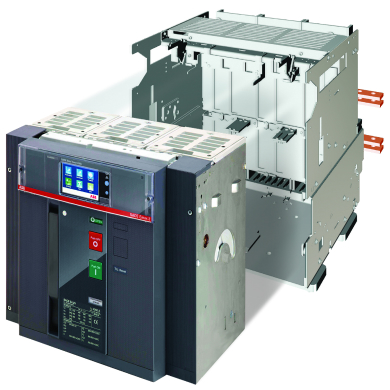

SACE New Emax
Earlier six-frame ABB air circuit-breaker platform covering up to 6300 A, retained for identification and retrofit planning.
SACE Emax, Megamax, Novomax & Otomax
Legacy ABB/SACE air circuit-breaker platforms grouped for identification, service and project-specific retrofit review.

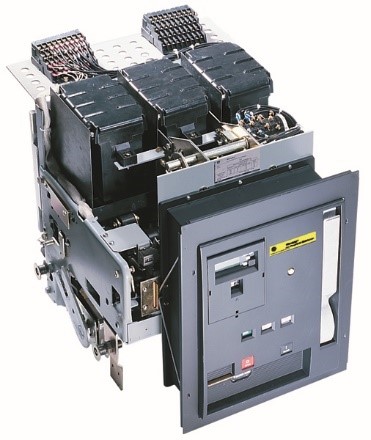

GE WavePro, AKR & M-Pact
Legacy GE low-voltage power circuit-breaker platforms retained for nameplate identification and engineered retrofit review.
