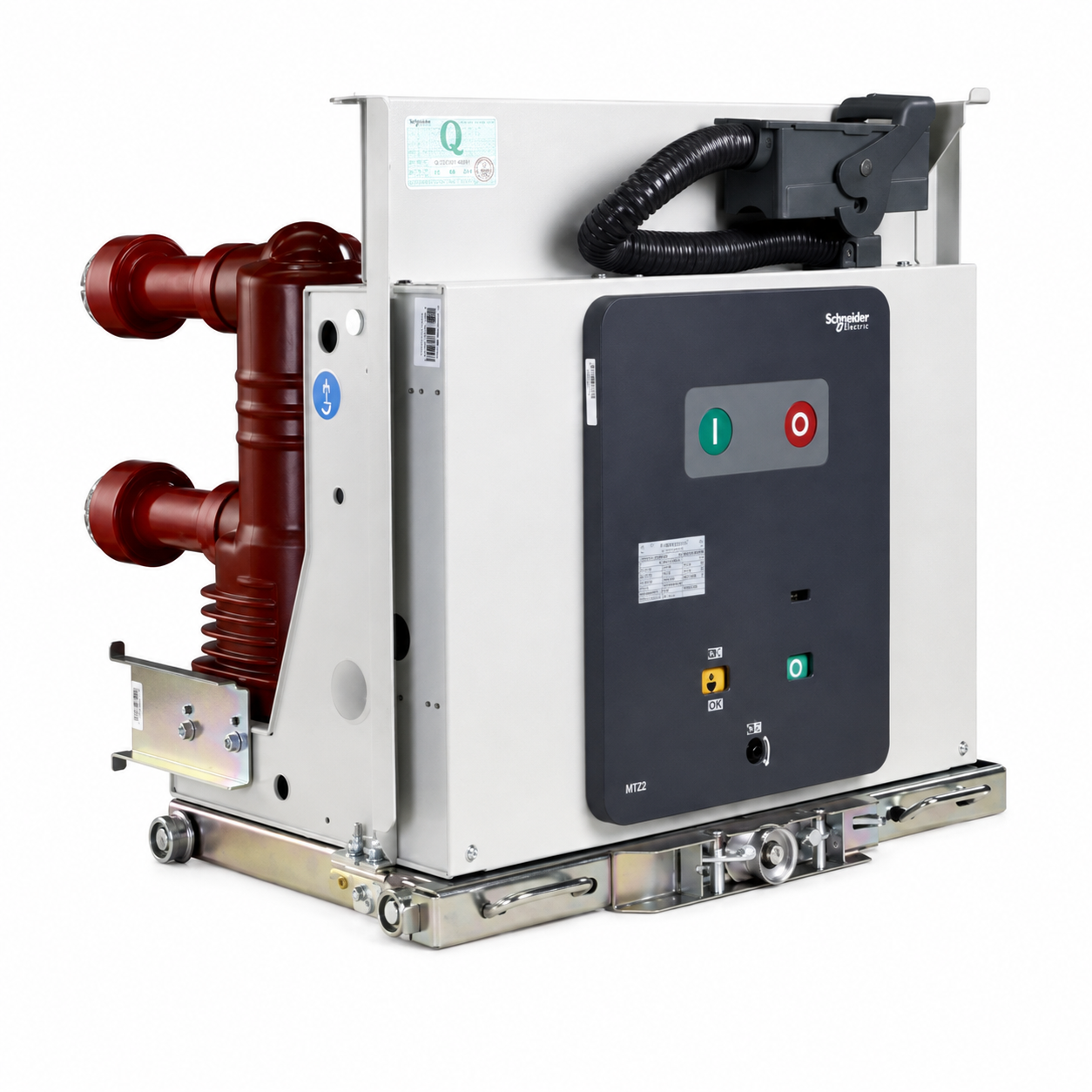

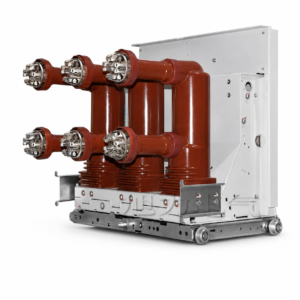

HVX24-K

HVX 24/K Product Features

24 kV Medium Voltage Applications: Designed for 24 kV AC power distribution systems, suitable for medium voltage power distribution applications such as substations, industrial plants, and infrastructure.

Vacuum Arc Extinguishing Technology: Utilizes a vacuum arc extinguishing chamber, featuring rapid dielectric recovery, stable arc extinguishing performance, and low contact wear.

Reliable Short-Circuit Breaking Capacity: Capable of quickly interrupting short-circuit and fault currents; the specific rated short-circuit breaking current needs to be determined based on the HVX 24/K nameplate model.

High Insulation Performance: Designed to meet the insulation requirements of 24 kV systems, maintaining reliable insulation performance under normal operation and specified overvoltage conditions.

Long Mechanical Life: The mature spring energy storage operating mechanism combined with vacuum arc extinguishing technology can meet the long-term operation and frequent opening and closing requirements of medium voltage power distribution systems.

Low Maintenance Design: The vacuum arc extinguishing chamber adopts a sealed structure, eliminating the need for replenishing oil or gas arc extinguishing media, which helps reduce life-cycle maintenance workload.

Stable operating mechanism: Enables rapid and reliable opening and closing, and can be configured with electric energy storage, shunt trip, and undervoltage trip functions.

Compact structure: The overall structure is optimized for medium-voltage switchgear installation, facilitating control of cabinet size and improving space utilization.

Flexible accessory configuration: Auxiliary contacts, closing coils, tripping coils, electric energy storage mechanisms, and phase-locking accessories can be configured according to project requirements.

Comprehensive safety interlocking: Can form mechanical and electrical interlocks with the switchgear’s grounding switch, cabinet doors, and related operating mechanisms, improving operational safety.

Convenient installation and maintenance: The modular structure facilitates equipment inspection, maintenance, and accessory replacement, reducing power outage maintenance time.

Wide application range: Suitable for the control and protection of feeders, transformers, busbars, motors, and industrial medium-voltage power distribution circuits.

HVX 24/K Key Selling Points: Reliable vacuum breaking; 24 kV insulation class; High short-circuit breaking capacity; Long service life; Low maintenance; Compact design; Flexible configuration; High operational reliability.
