EvoPacT HVX
Digital indoor vacuum circuit-breaker platform covering 12 to 36 kV variants.
Schneider Electric
VACUUM CIRCUIT BREAKERS
SERIES-LEVEL CATALOG
ONE CARD PER PRODUCT PLATFORM
Thirteen platform pages cover 18 range branches, with voltage or construction branches of one platform grouped inside its detail page. Open a family to review voltage, current, breaking duty, poles, mounting and representative commercial models. No online configurator is provided.
VIEW SERIES
EasyPact EXE
Economic indoor VCB platform up to 17.5 kV, with fixed, withdrawable, base and assembled variants.

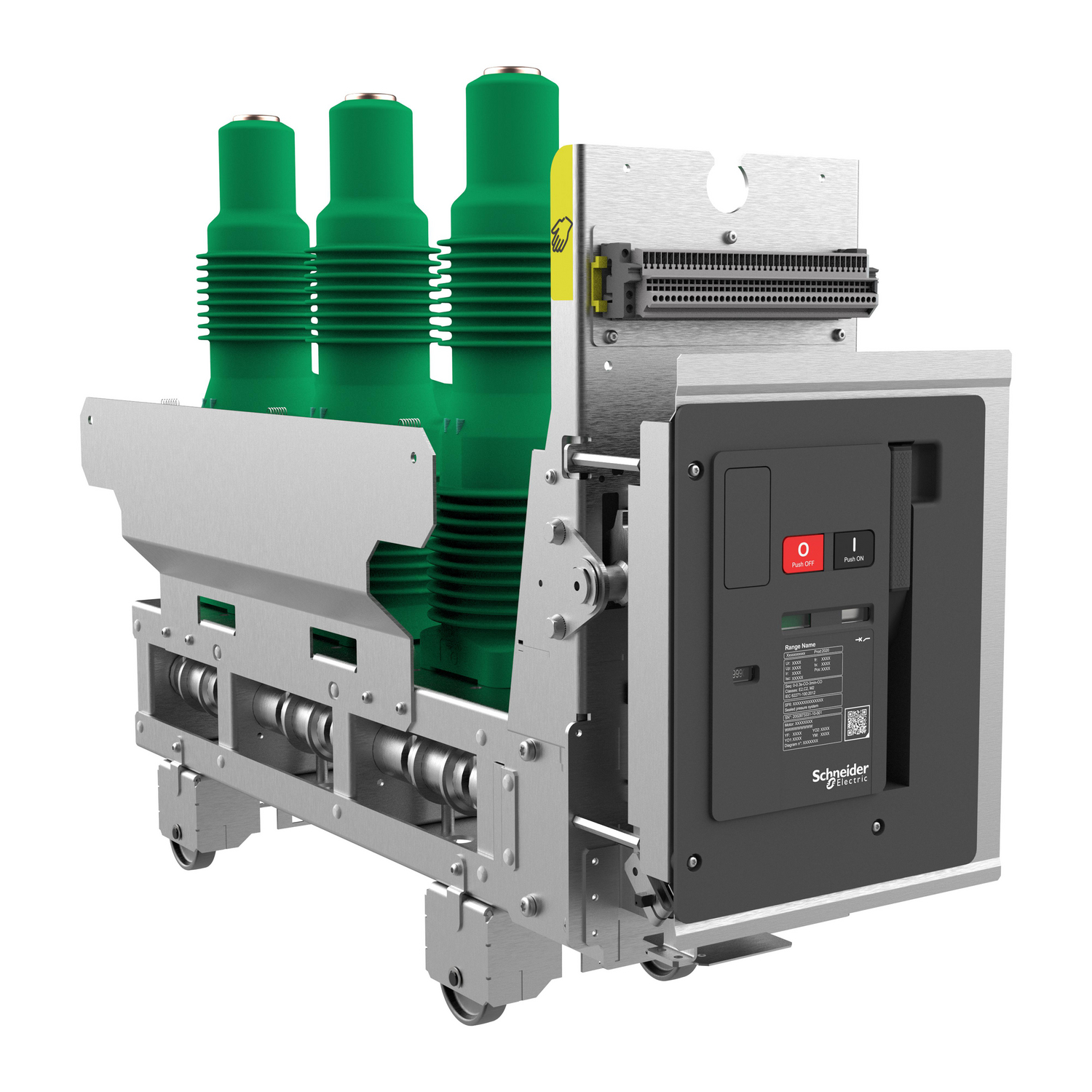

EvoPacT ETL
Lateral indoor VCB for secondary distribution up to 24 kV and 1250 A.

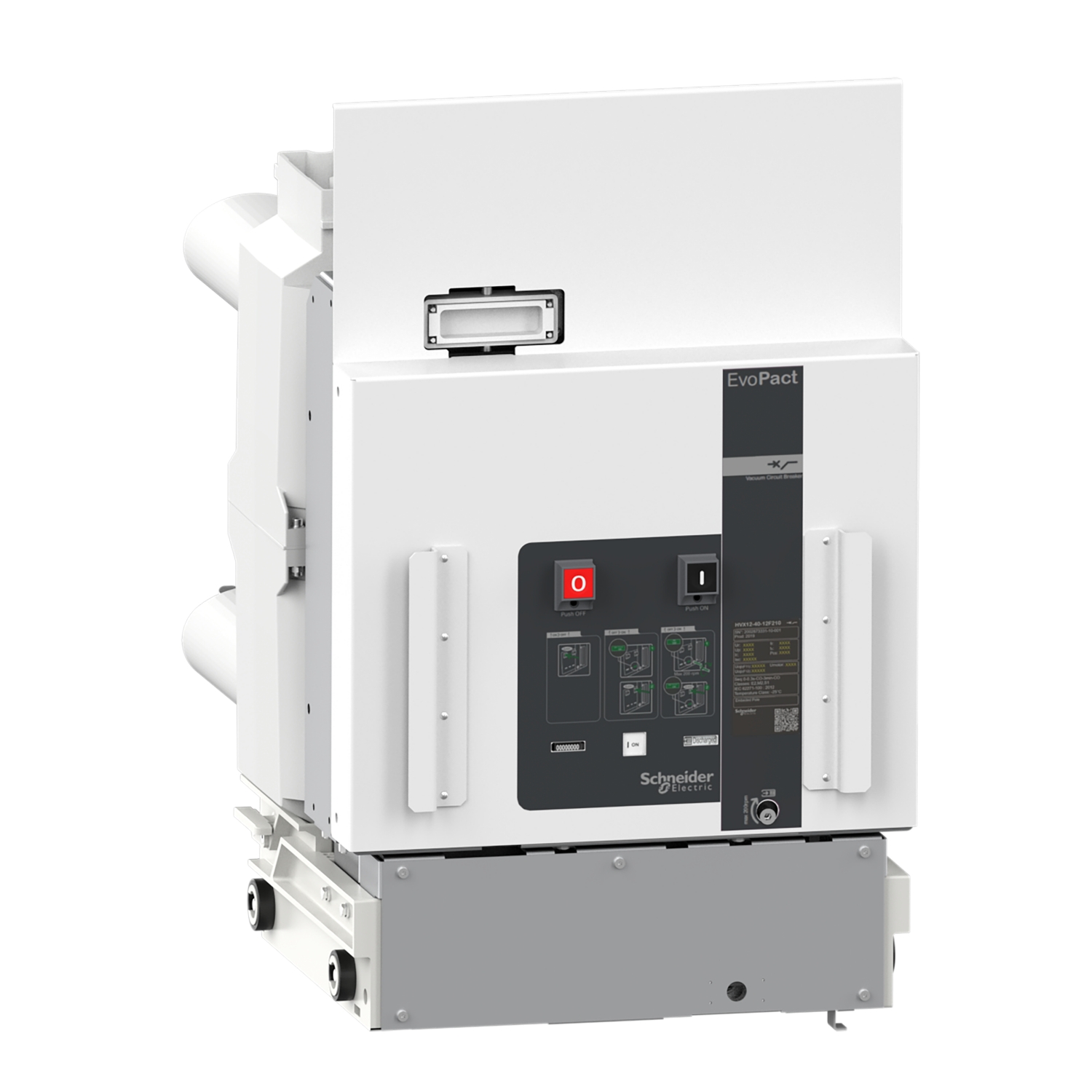

EvoPact HVX Classic
Classic HVX embedded-pole, assembled-pole and 36 kV HVX-O branches kept in one platform page.

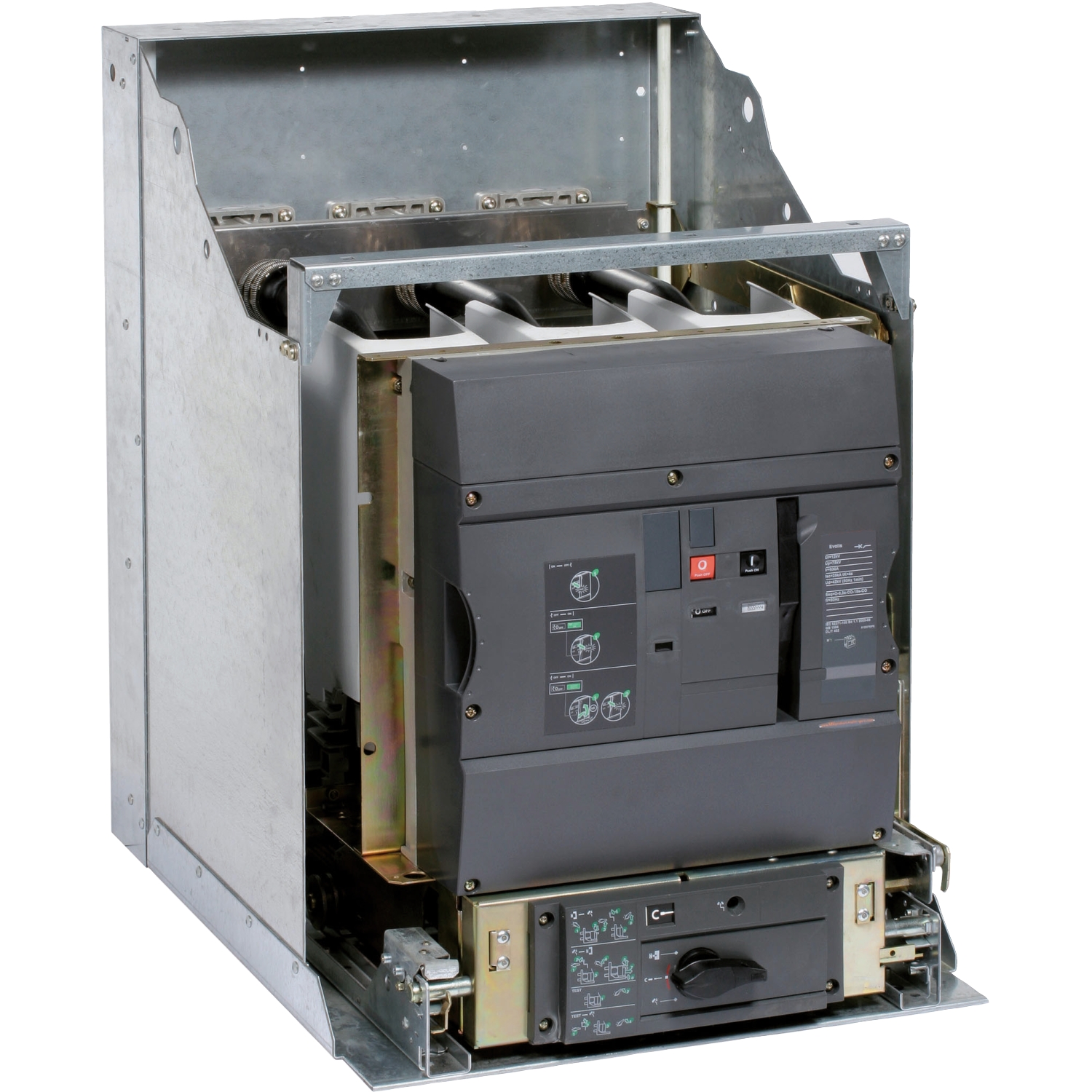

Evolis
Indoor three-pole VCB family up to 24 kV for fixed or cradle-based integration.

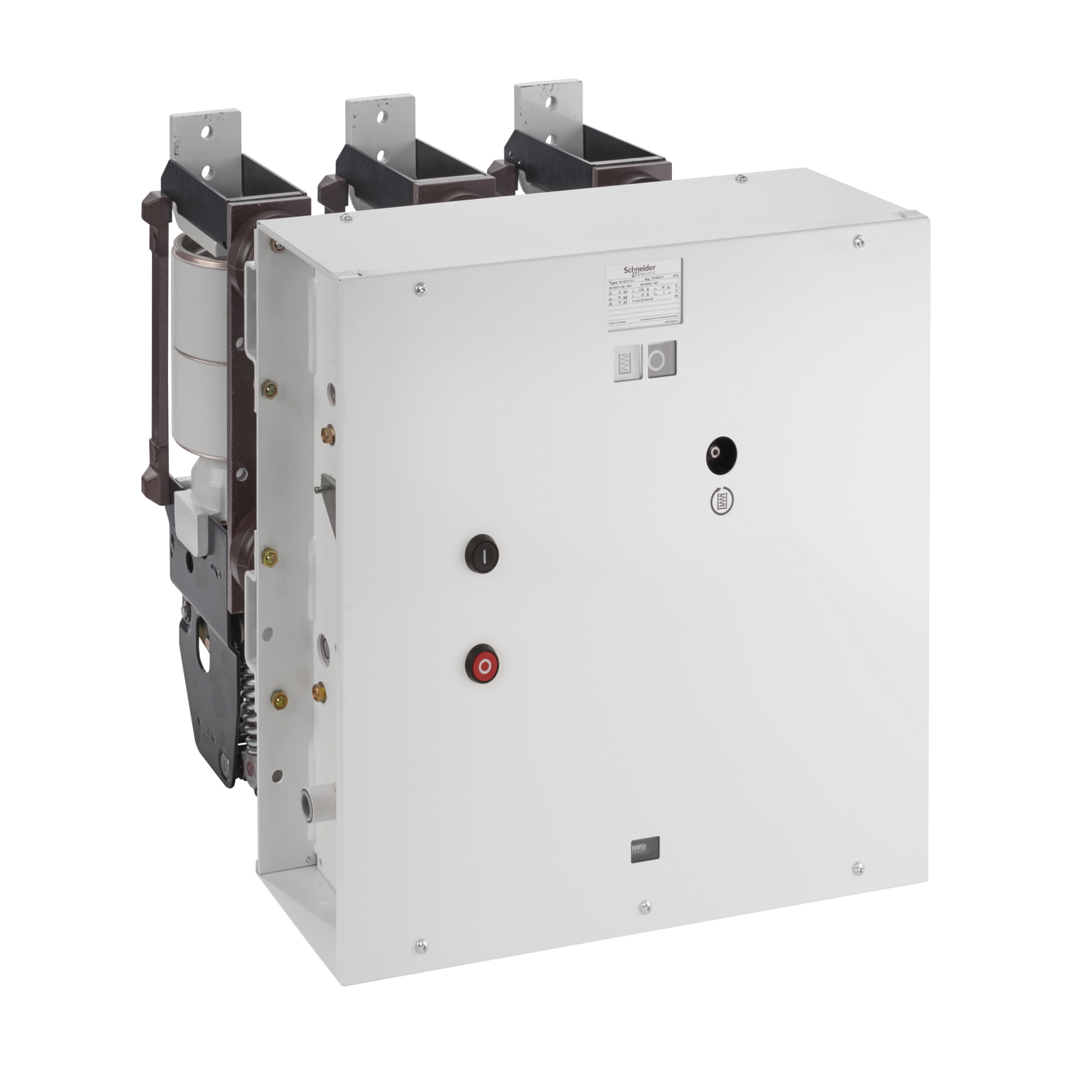

VA / VAA / VAH
Classic three-pole indoor VCB families for general and high-duty applications.

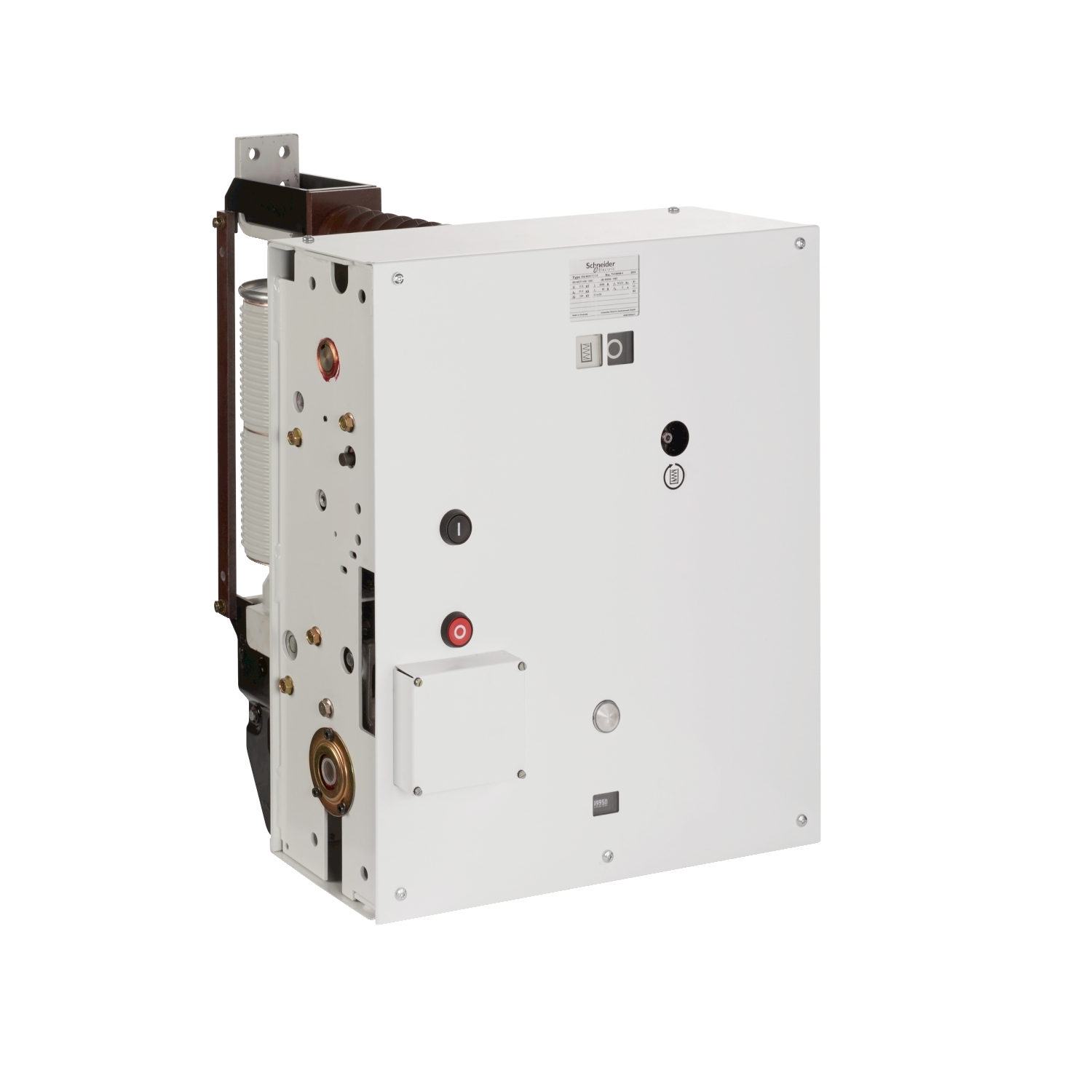

VXA / VXB
Indoor VCB platform for AC railway traction applications up to 27.5 kV.

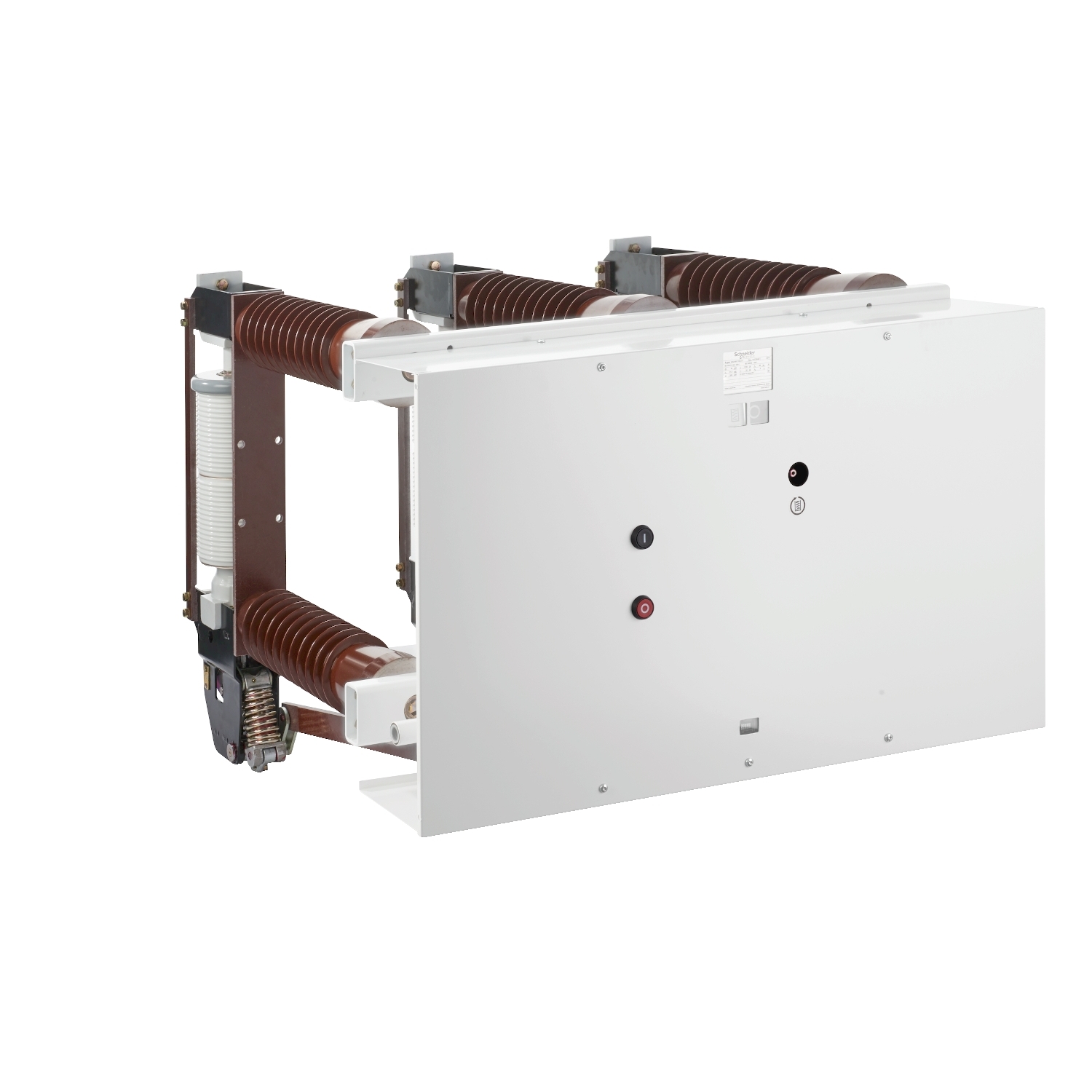

VXC
Heavy-duty indoor MV circuit breaker for arc-furnace applications up to 38 kV.

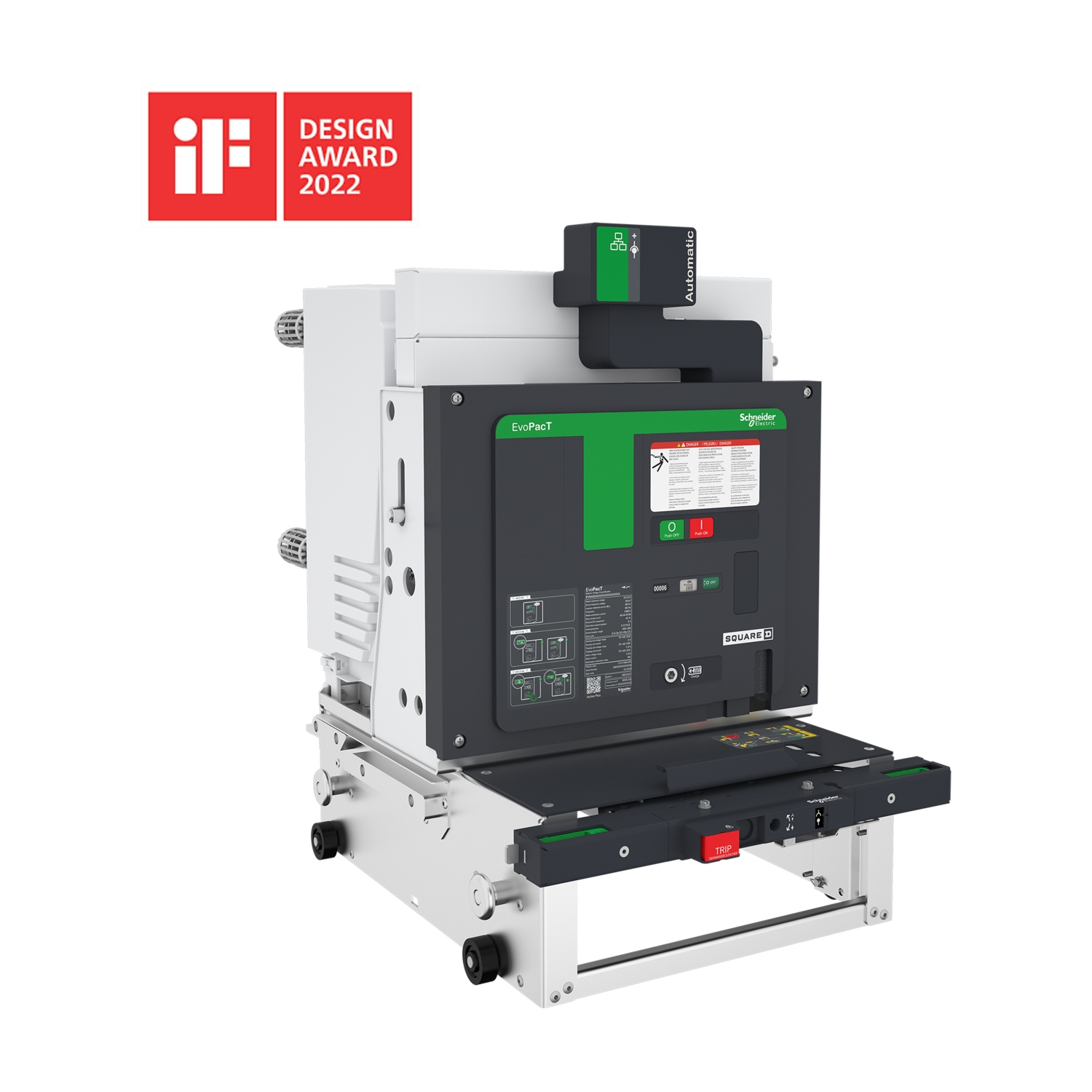

EvoPacT ANSI
ANSI/IEEE drawout digital VCB platform for 5 and 15 kV applications.

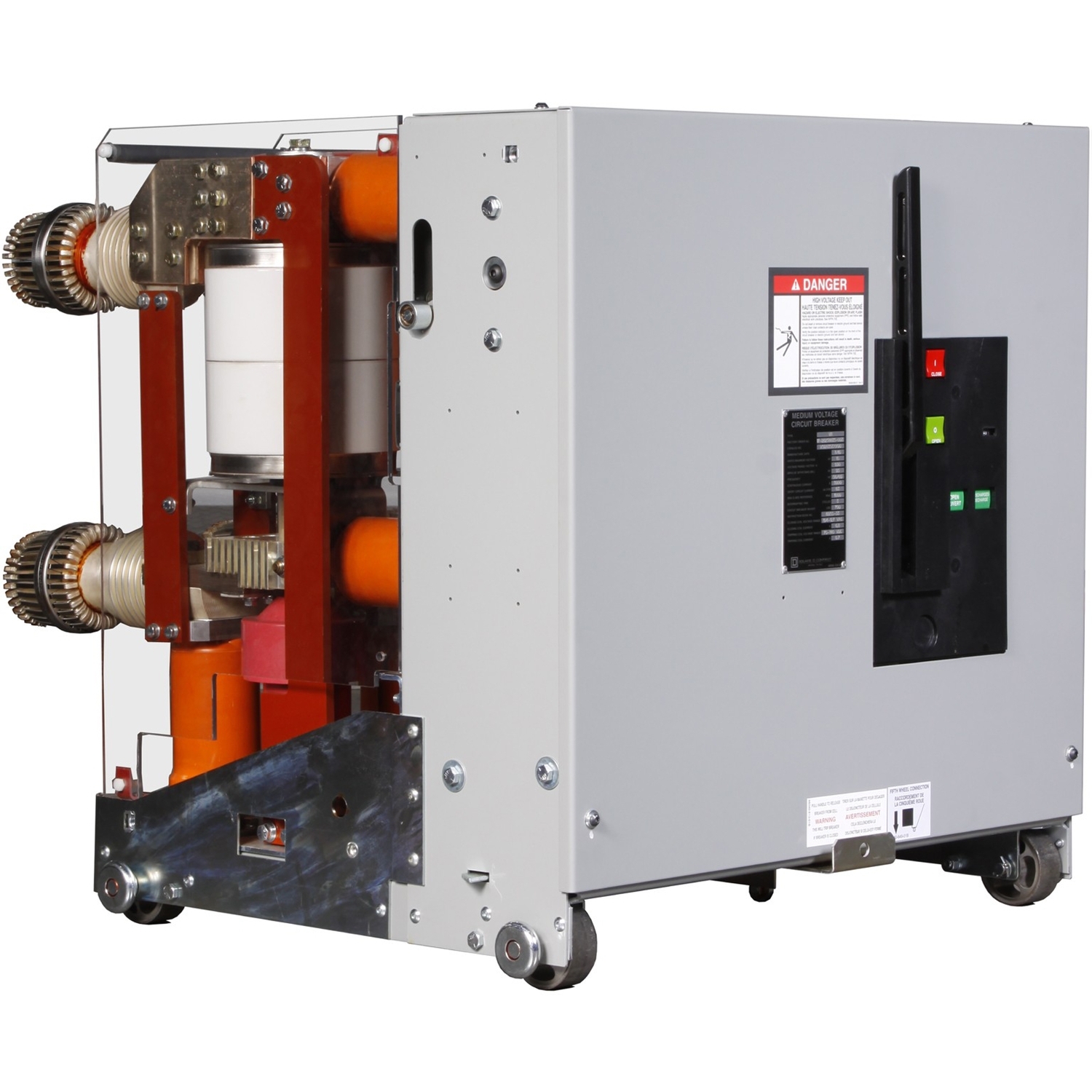

VR
Horizontal drawout VCB family up to 27 kV for Masterclad MV switchgear.

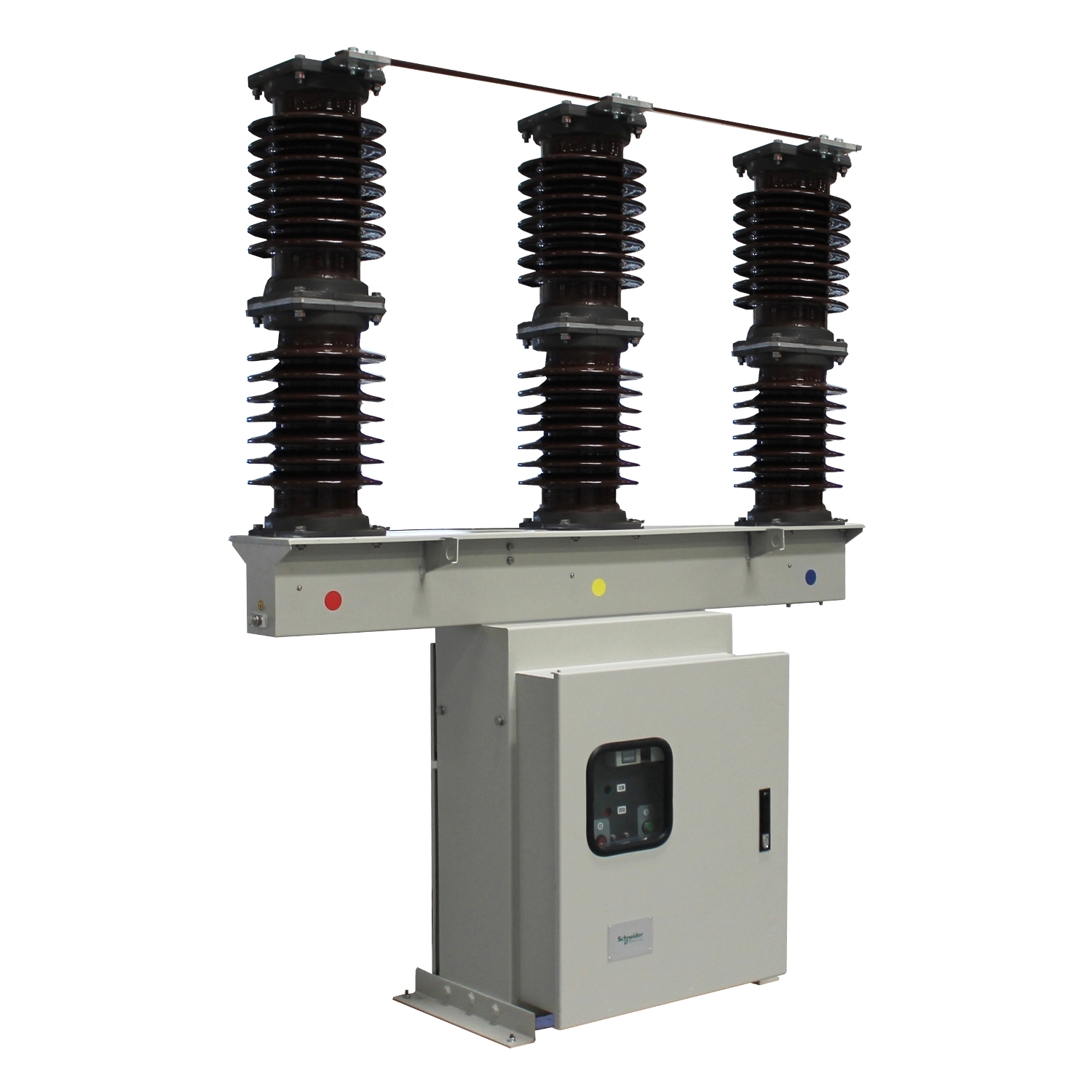

PCOB 36
Outdoor porcelain-clad live-tank vacuum circuit breaker for 36 kV systems.

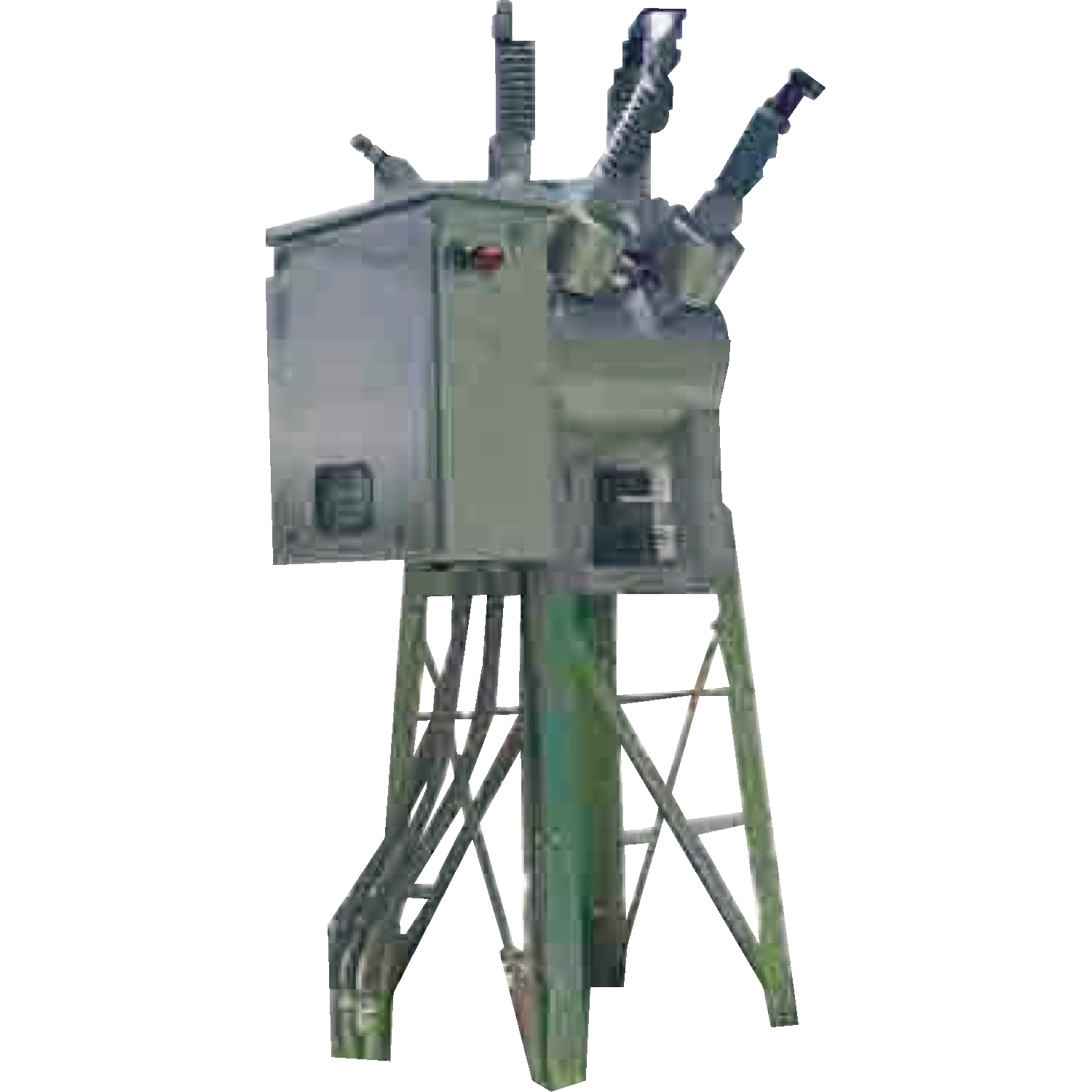

VOX
Outdoor dead-tank gas-insulated vacuum interrupter circuit breaker up to 38 kV.

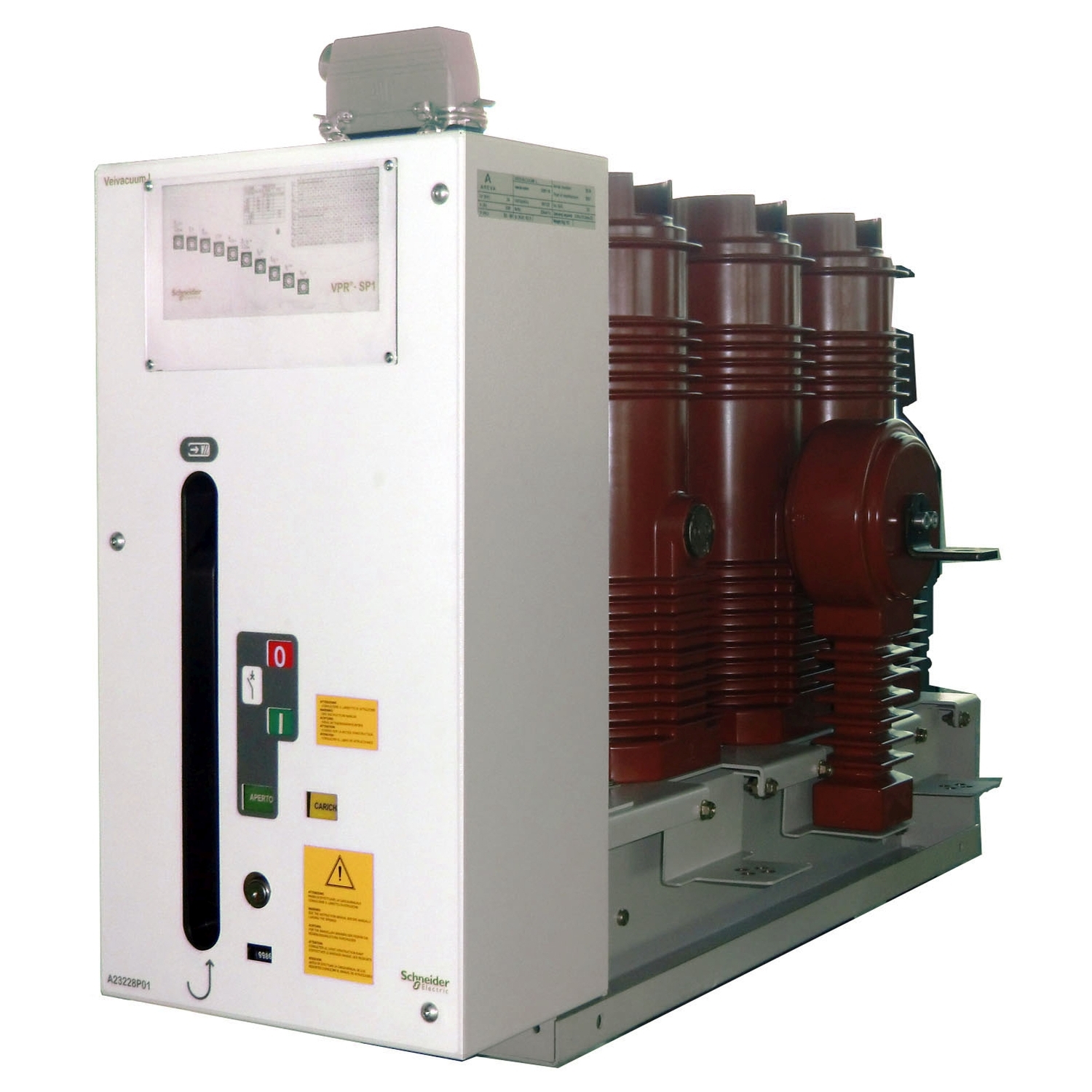

VEIVACUUM / L / F
Historical indoor VCB platform retained for nameplate identification, service and replacement review.
